How to replace a Uni-Max^® pump.

1. Drain the fluid reservoir.

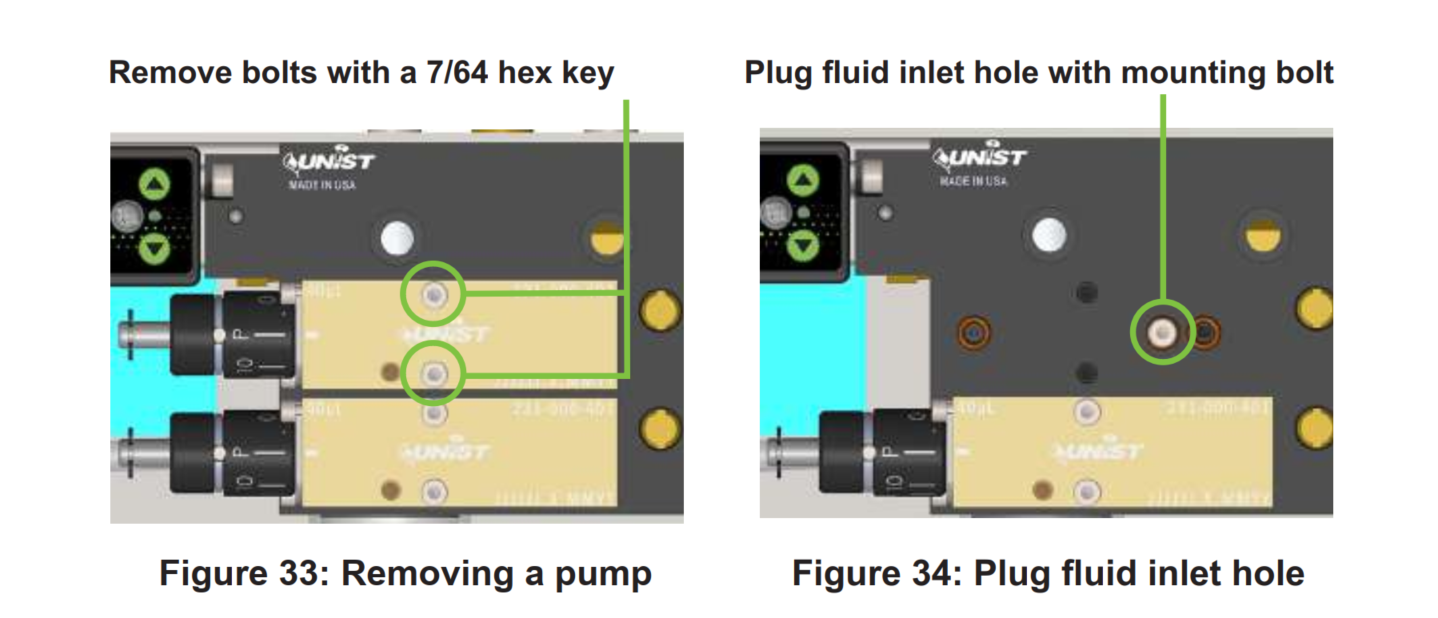

2. Remove the two pump-mounting bolts on the front of the pump using a 7/64 hex key.

3. The middle hole behind the pump can be temporarily plugged with one of the pump-mounting bolts to minimize fluid leakage. See Figure 34 below for more detail.

4. Ensure all three O-rings are installed in the manifold and are not cut or damaged.

5. Replace with a new pump and tighten bolts to 6 in-lbs torque.

6. Fully prime the pump.
