lubrication for advanced drilling units

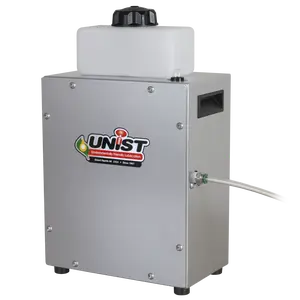

Typhoon™ EL

For use with electric ADU’s, precision MQL for aerospace drilling
Product Support
Overview
Technical
Support

Sample Request

✕

Step 1: Contact Info

Step 2: Sample Type

Step 3: Usage Info

Step 4: Shipping Info

Note: Currently, we can only ship samples to Canada, Mexico, or the United States.

25%

Highest level of MQL control

Designed for integration with an electric ADU, the Typhoon™ EL provides the highest level of MQL control for airframe drilling. Giving users the ability to change fluid output rates throughout the drilling cycle, and with features like an optional integrated vacuum valve, the Typhoon™ EL is the most advanced MQL system for ADU drilling.




lubrication for advanced drilling units

Typhoon™ EL Benefits

Fluid savings, use only what you need
Fluid savings, use only what you need
Eliminate rework with consistent hole quality
Eliminate rework with consistent hole quality
Better cutter life
Better cutter life
Highest level of fluid output control
Highest level of fluid output control
Use environmentally-friendly, renewable lubricants
Use environmentally-friendly, renewable lubricants
Pumps are warrantied for life when used exclusively with Coolube®
Pumps are warrantied for life when used exclusively with Coolube®

Typical Applications

Features

electric portable ADU

Ergnomic design

Two handle lift for easy transportation

quickly prime the system

Fast priming

electric adu lubricator durability

Durable and compact industrial design

Rugged design built to provide years of performance in tough conditions

Options

Pump flow sensing
Pump flow sensing Monitors output of pump to ensure that it is pumping fluid each time it strokes
Vacuum shutter valve
Vacuum shutter valve Used to control a vacuum source for evacuating chips and debris from the cutting tool area
Low level switch
Low level switch Consists of a float and a switch inside the reservoir

Related Products

Mini-Piggyback™
Mini-Piggyback™
Portable cutter lubrication for pneumatic tools
Typhoon™
Typhoon™
Portable lubrication for pneumatic ADU cutting tool & air motor
Typhoon™ SP
Typhoon™ SP
Portable lubrication for pneumatic ADU cutting tool only
Coolube®
Coolube®
Advanced metal cutting lubricant
Find the right advanced drilling unit lubrication solution!
Want to read more?
View Technical Information

Specifications

Output Dual channel
MV Pump Max Fluid Viscosity
▪ 1300 SUS Max (1-drop pump)
▪ 500 SUS Max (2-drop pump)
Output rate
▪ 1-drop pump output: 0.03 – 8 mL/min
▪ 2-drop pump output rate: 0.07-18mL/min
Reservoir
▪ Standard 32 oz
▪ Optional 61 oz
Valves 24VDC

Requirements

Power 24 VDC (max 125mA)
Air Supply Clean, dry compressed air: 90-110 psi (6-8 bar)
