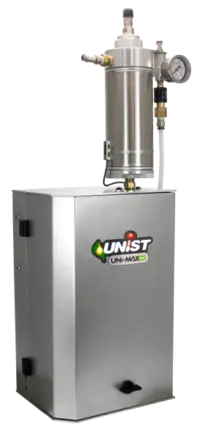

Uni-Max grease dispensing system

Uni-Max® HV

Automate manual grease application
Product Support
Overview
Technical
Support

Sample Request

✕

Step 1: Contact Info

Step 2: Sample Type

Step 3: Usage Info

Step 4: Shipping Info

Note: Currently, we can only ship samples to Canada, Mexico, or the United States.

25%

Reliable lubrication

Eliminate downtime caused by unlubricated wear-points and streamline grease application in assembly processes with the Uni-Max® HV. Automate manual grease application, ensuring precise and repeatable output at any desired interval.

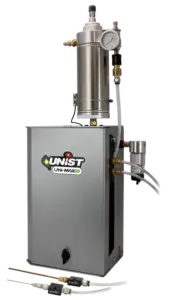

Uni-Max® HV

Uni-Max® HV Benefits

Automate lubrication
Automate lubrication
Refill with standard grease gun
Refill with standard grease gun
Control up to 12 grease outputs
Control up to 12 grease outputs
Low maintenance - tested to 12 million pump cycles
Low maintenance - tested to 12 million pump cycles

Features

precise grease dispensing

Precision dosing

Control your grease output down to the microliter.

easy to refill automated grease system

Easy to refill

Refill reservoir with standard grease gun.

Prevents airlock in the pump.

Self-priming

For hassle-free start-up, pumps draw fluid even if air is present

Options

Continuous or shot spray
Continuous or shot spray Choose between a consistent spray or individual shots of lubrication
Advanced control
Advanced control

Pumps can be actuated individually, grouped, or remotely

Actuation
Actuation

Actuate the system with air pilot, solenoid, or manual valve

Performance monitoring
Performance monitoring

Monitor fluid output with flow sensors

Pump size and style
Pump size and style Fixed or adjustable pumps with 20, 40, or 60 µL outputs
Enclosure lock
Enclosure lock Optional tamper-proof keyed lock
Grease output quantity
Grease output quantity Choose up to 12 separate grease outputs

Related Products

Uni-Max® Pro
Uni-Max® Pro
1–12 outputs, precision fluid dispensing
Uni-Max® ST
Uni-Max® ST
1-2 output, continuous or shot spray lubrication
Find the right grease dispensing system for you
Want to read more?
View Technical Information

Specifications

Pump output and cycle rate
▪ 20µl: 720 mL/hr, 600 cycles/min*
▪ 40µl: 1200mL/hr, 500 cycles/min*
▪ 60µl: 1800 mL/hr, 500 cycles/min*
Pump timer (pneumatic pulse generator)
▪ Recommended: 5-50 pulses/minute
▪ Maximum: 200 pulses/minute (not recommended for continuous operation)
Pump timer (electronic PulseR™)
▪ Recommended 5-50 Cycles per minute (Modes 1 & 2 on the Pulse R™)
▪ Maximum: 250 cycles/minute
Flow sensor PNP sensor, 5-28VDC
Air flow rate 0-4.7 SCFM (0-131 LPM) for each air and oil output. 1-2 SCFM (28-56 LPM) typical
Operating temperature 32°-122°F (0°-50°C)
Storage temperature 4°-158°F (-16°-70°C)
*Grease cycles per minute based on NLGI 0 with the pressurized reservoir set to 30psi

Requirements

Fluid viscosity NLGI Grade 000 - NLGI Grade 3 greases
Supply air pressure Clean, dry compressed air, 80-100 psi (4-7 bar)
Direct pump actuation On/Off timer 0.030s minimum on time/ 0.070s minimum off time*
*For remote valve stacks this time may increase based on length of inlet air line
