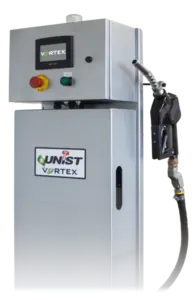

The Vortex™ delivers accurate mixing ratios from 1:1 to 99:1 at flow rates between 1.5 and 5 gallons per minute. Built to handle a variety of fluids—including machining coolants, stamping lubricants, mold release agents, and grinding fluids.
Patent-pending vacuum sensing technology maintains precise mixing, outperforming traditional venturi systems—even under fluctuating water pressure.
Real-time alerts
Monitor usage and ensure mixing accuracy
Complete mixing
In-line static mixer ensures a complete blend
Tamper-proof mix lock
Prevent tampering with mix settings
Fluid totalizer
Track total fluid consumption
| Power requirements | 120/240 VAC single-phase, 3 amps, 50/60 Hz |
| Concentrate viscosity | 1—1,000 cSt |
| Fluid mixing ratio range | 1:1–99:1 (water:concentrate) |
| Air supply | 80-100 psi [5.5-6.9 bar], 5 SCFM for standard unit, 25 SCFM if equipped with distribution pump |
| Water supply requirements | 1-8.4 GPM [3.7-18.9 LPM], reverse osmosis and deionized water compatible |
| Weight | 140 pounds [63.5 kg] |
