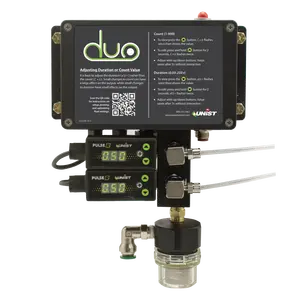

The Duo™ fluid controller delivers controlled, repeatable coil stock lubrication for narrow-width stamping applications. With Duo™, you conserve lubricant by applying only what you need, directly to the stock, without overspray or excess fluid mess.
Easily adjustable
Select lubrication amount easily with two-button adjustment
Low fluid warning
Know when it's time to refill with LED indicator
Simple integration
Integrate quickly with basic connections
Tamper proof digital lock
Lock lubrication settings with simple tamper proof digital lock
| Stock width | 1"-18" |
| Input power | 120 VAC, 0.5A, or 240 VAC, 0.3A, 50/60 Hz |
| Optional input power | 24VDC +/-10%, 20 Watts |
| Output | 24 VDC |
| Max duration | 250 Seconds |
| Max count | 999 |
| Cycle inputs | 24 VDC, PNP |
| Max input signal frequency | 50Hz at 50% duty cycle |
| Fluid valves |
▪ 2-way normally closed solenoid valve
▪ 24 VDC, 5.4 watts
|
| Air supply | Clean, dry compressed air: 80-100 psi (5.5-6.9 bar). 25 SCFM (708 SLPM) minimum. |
| Fluid supply | 10-100 psi (0.7-6.9 bar) fluid pressure from a centralized fluid supply or pressurized tank. Typical fluid pressure is 30 psi (2.1 bar). |
